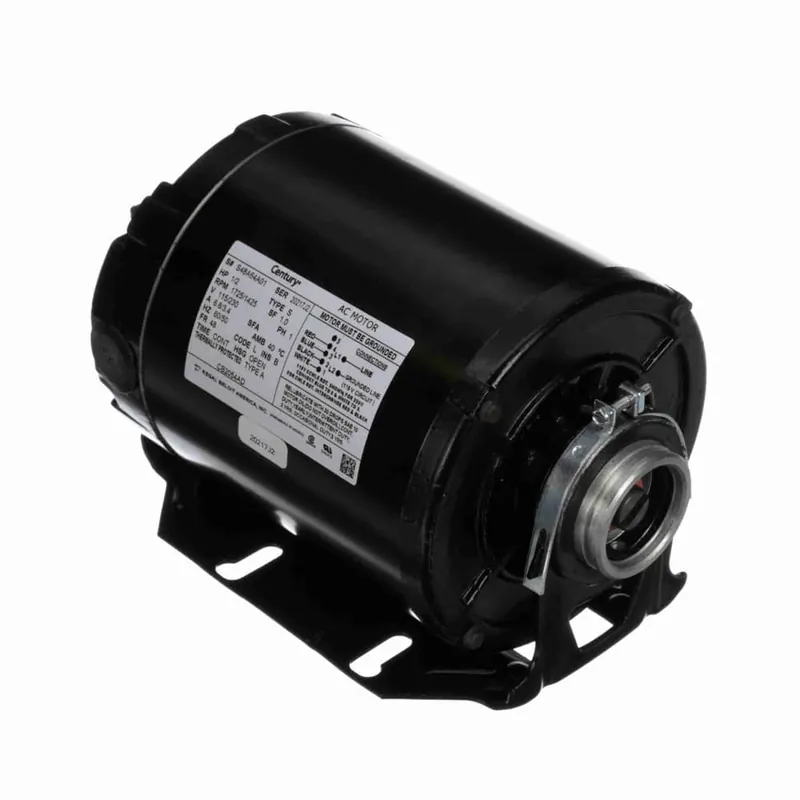

1/2HP 1PH 5.6″ 4P ODP 1800 115/230V AOL

Description

Product Information

Brand Century
Mfr # CB2054AD
Wright’s # CEN CB2054AD
Country of Origin MEX

Specifications

C Dim 8.79″
Electrical Type Split Phase
Enclosure ODP
Frame 48
Frequency 60/50 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 6.8/3.4
Rated Voltage 115/230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725/1425
Starting Method
