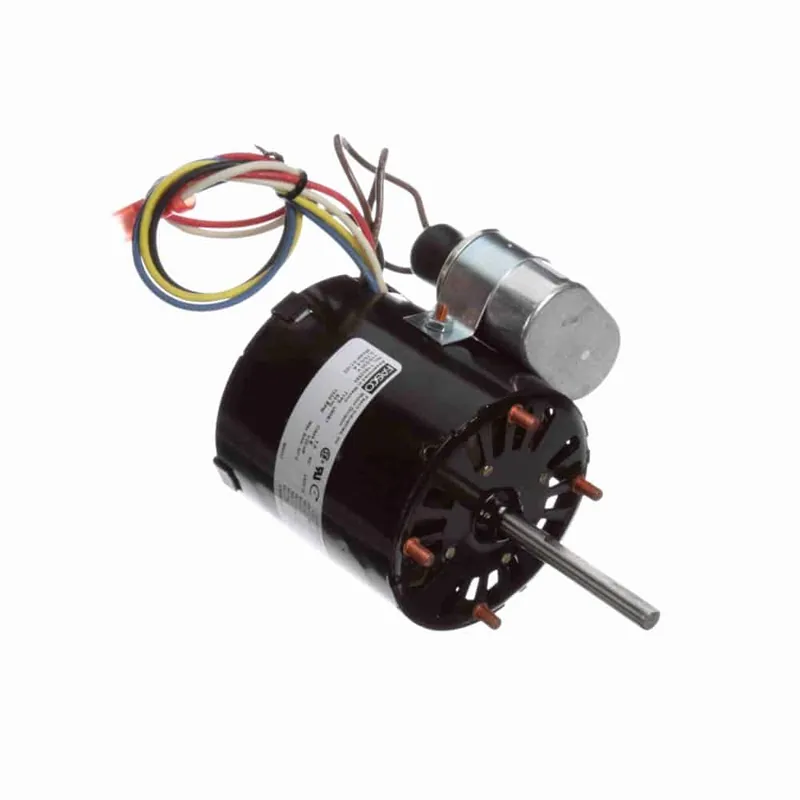

1/20HP PSC 3.3″ 1550 CWSE 115/230V 5uF-inc

Description

Product Information

Brand Fasco
Mfr # D1102
Wright’s # FAS D1102
Country of Origin MEX

Specifications

C Dim 6.41″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 3.3″
Frequency 60 Hz
HP 0.05 HP
HP2 1/20 HP
Insulation Class B
kW 0.04kW
Material Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.75/0.40
Rated Voltage 115/230
Rotation Clockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.313″
Starting Method
