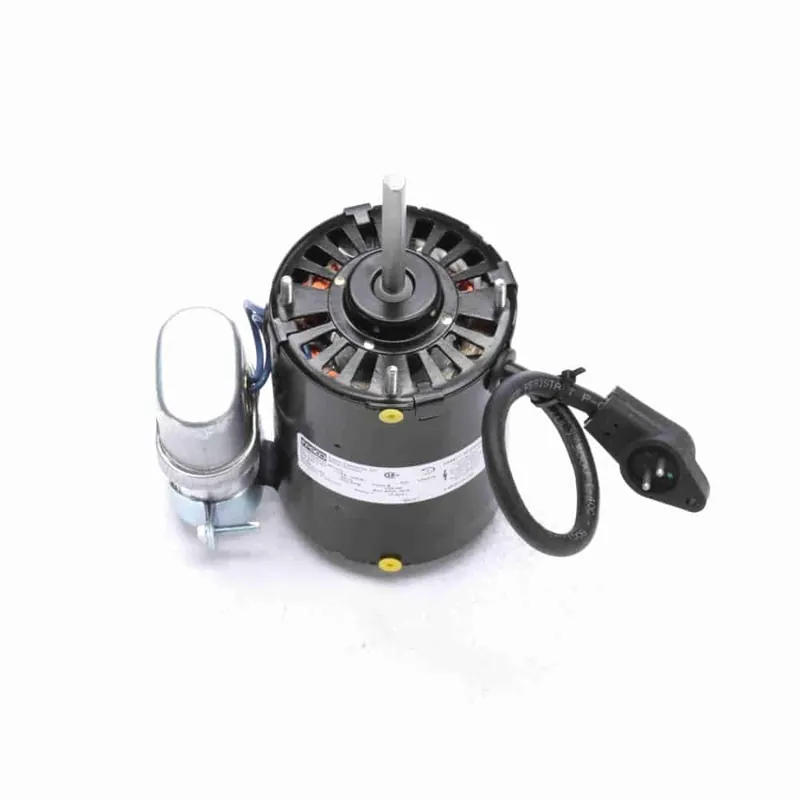

1/20HP PSC 3.3″ 1550 CCWSE 208-230V 4uF-inc

Description

Product Information

Brand Fasco
Mfr # D1245
Wright’s # FAS D1245
Country of Origin MEX

Specifications

C Dim 7.4″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 3.3″
Frequency 60 Hz
HP 0.05 HP
HP2 1/20 HP
Insulation Class B
kW 0.04kW
Material Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.3
Rated Voltage 208-230
Rotation Counterclockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.313″
Starting Method
