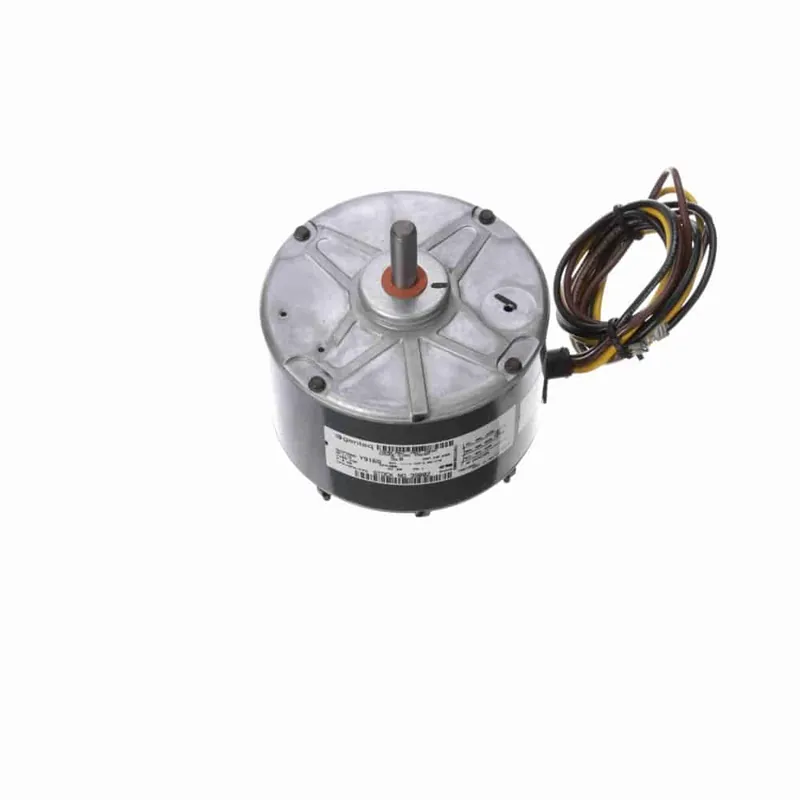

1/15HP PSC 5.6″ TE 800 CCWSE 208-230V 5uF

Description

Product Information

Brand Genteq
Mfr # 3S002
Wright’s # GEN 3S002
Country of Origin MEX

Specifications

C Dim 5.71″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6″
Frequency 60 Hz
HP 0.07 HP
HP2 1/15 HP
Insulation Class B
kW 0.05kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.50
Rated Voltage 208-230
Rotation Clockwise
RPM 800
Service Factor 1
Shaft Diameter 0.5″
Speed 800
