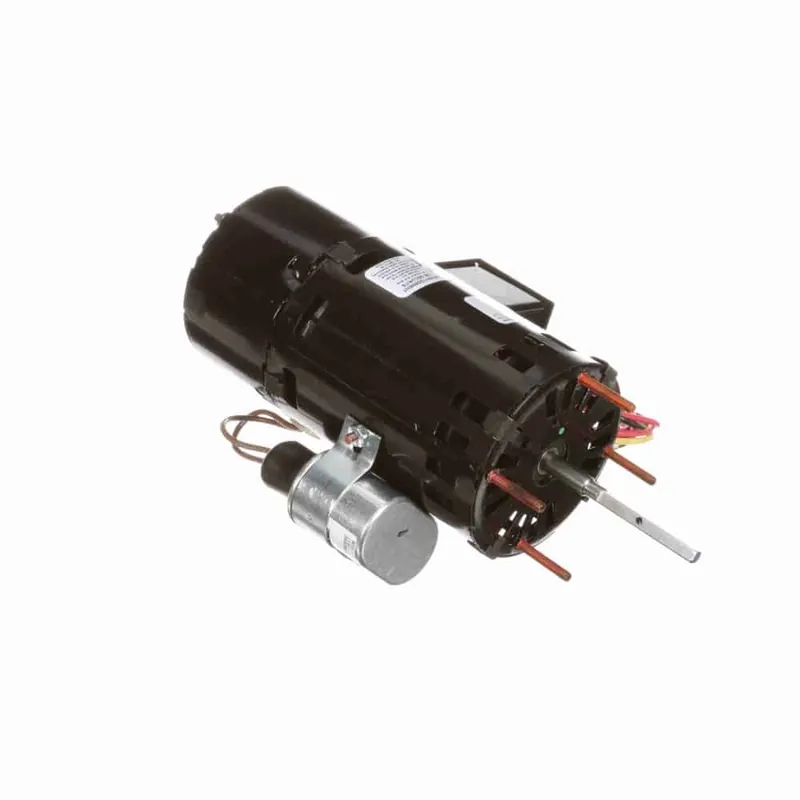

1/15HP PSC 3.3″ 3450 CWSE 208-230V 4uF

Description

Product Information

Brand Fasco
Mfr # D1178
Wright’s # FAS D1178
Country of Origin MEX

Specifications

C Dim 9.82″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 3.3″
Frequency 60 Hz
HP 0.07 HP
HP2 1/15 HP
Insulation Class B
kW 0.05kW
Material Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.5
Rated Voltage 208-230
Rotation Clockwise Shaft End
RPM 3450
Service Factor 1
Shaft Diameter 0.312″
Starting Method
