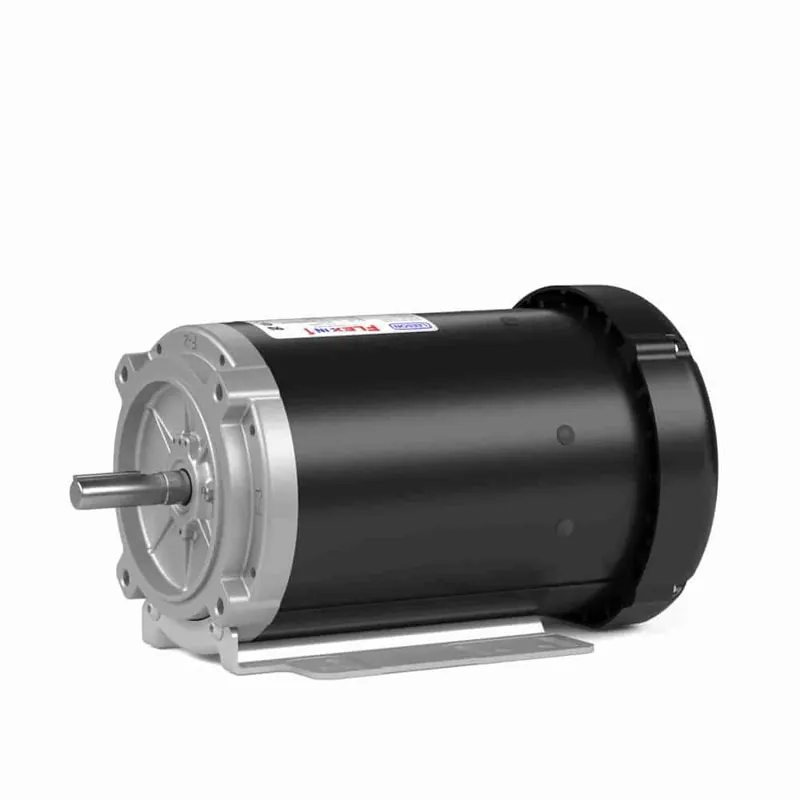

0.75HP 3PH 56HC 6P DP 1140 230/460V WB

Description

Product Information

Brand Leeson
Sub-Brand FLEX-IN-1™
Mfr # FX34BK005
Wright’s # LSN FX34BK005
Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated
Enclosure DP
Full Load Efficiency 81.7
Frame 56HC
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 6
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.8/1.4 & 2.4/1.2
Rated Voltage 230/460
Rotation Reversible
RPM 1140
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1140 & 950
Starting Method
