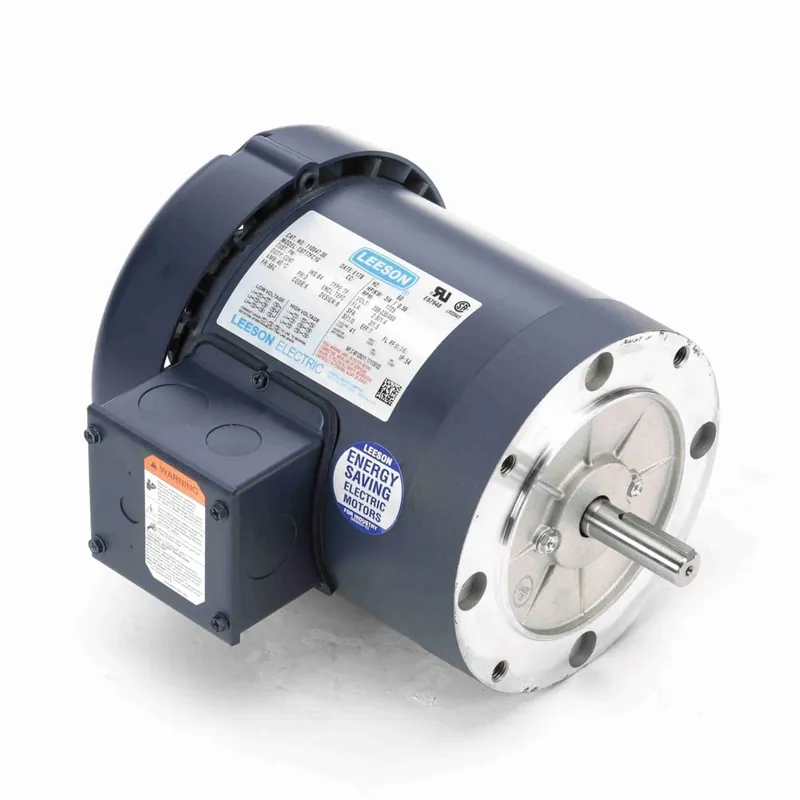

0.75HP 3PH 56C 4P TEFC 1725 230/460V NB

Description

Product Information

Brand Leeson
Mfr # 110047.00
Wright’s # LSN 110047.00
Country of Origin USA

Specifications

C Dim 10.48″
Electrical Type Squirrel Cage Induction Run
Enclosure TEFC
Full Load Efficiency 77
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.8/1.4
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
