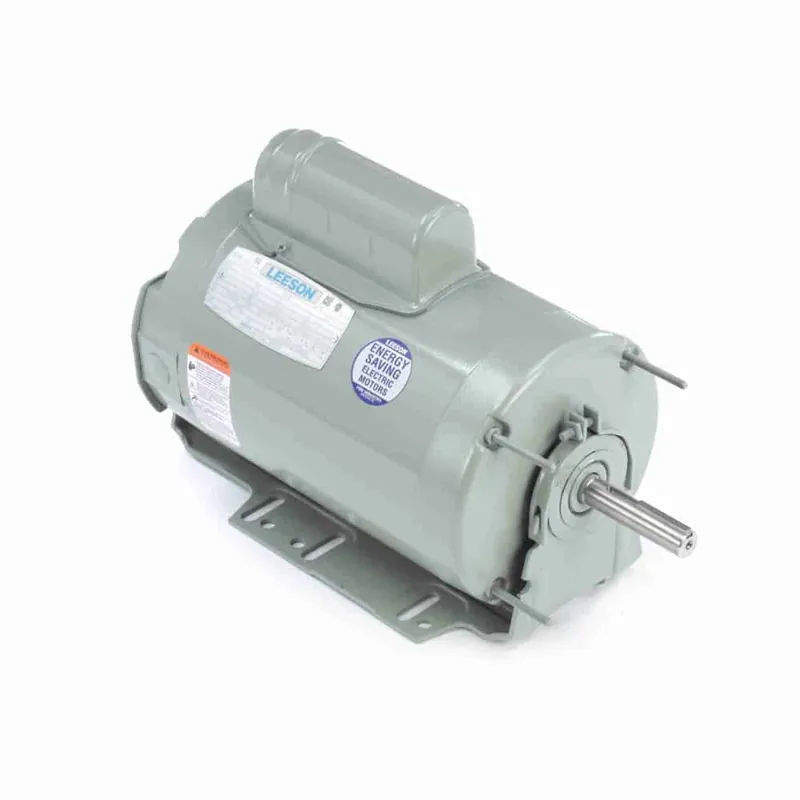

0.75HP 1PH 56HZ 6P TEAO 1075 PSC 115/230V AOL Farm

Description

Product Information

Brand Leeson
Mfr # 111322.00
Wright’s # LSN 111322.00
Country of Origin USA

Specifications

C Dim 14.1″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Full Load Efficiency 70
Frame 56HZ
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 8.0/4.0
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.625″
Speed 1075
Starting Method
