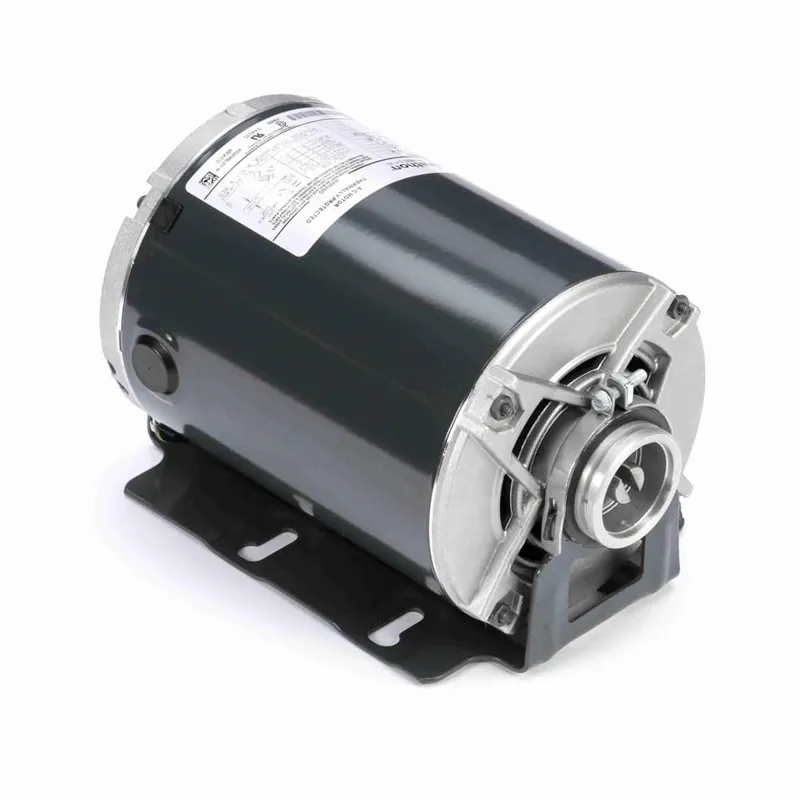

0.75HP 1PH 48Y 4P DP 1725 SpP 115/230V AOL

Description

Product Information

Brand Leeson
Mfr # HG714
Wright’s # LSN HG714
Country of Origin MEX

Specifications

C Dim 9.15″
Electrical Type Split Phase
Enclosure DP
Full Load Efficiency 68.3
Frame 48Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 10.4,5.2
Rated Voltage 115/230
Rotation Counterclockwise/Clockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.63″
Speed 1725
Starting Method
