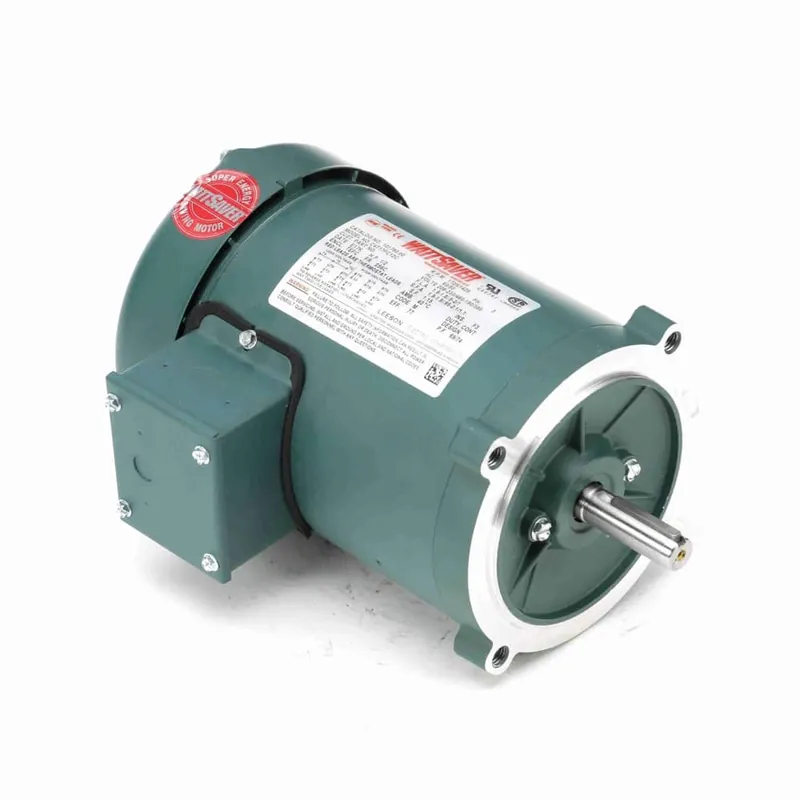

0.50HP 3PH 56C 4P TEFC 1725 230/460V TS NB

Description

Product Information

Brand Leeson
Mfr # 101780.00
Wright’s # LSN 101780.00
Country of Origin MEX

Specifications

C Dim 10.69″
Electrical Type Squirrel Cage Inverter Rated
Enclosure TEFC
Full Load Efficiency 77
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 1.8/.9 & 2/1
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
