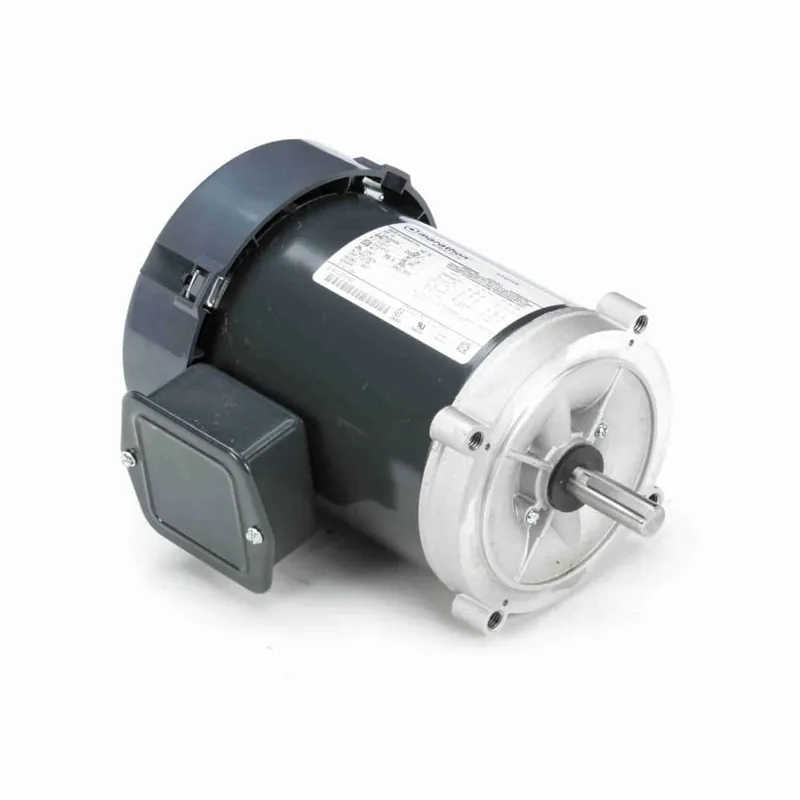

0.50HP 3PH 56C 4P TEFC 1725 208-230/460V NB

Description

Product Information

Brand Leeson
Mfr # K254
Wright’s # LSN K254
Country of Origin MEX

Specifications

C Dim 10.93″
Electrical Type Three Phase
Enclosure TEFC
Full Load Efficiency 76.1
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.1-2.2,1.1
Rated Voltage 208-230/460
Rotation Counterclockwise/Clockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.63″
Speed 1725
