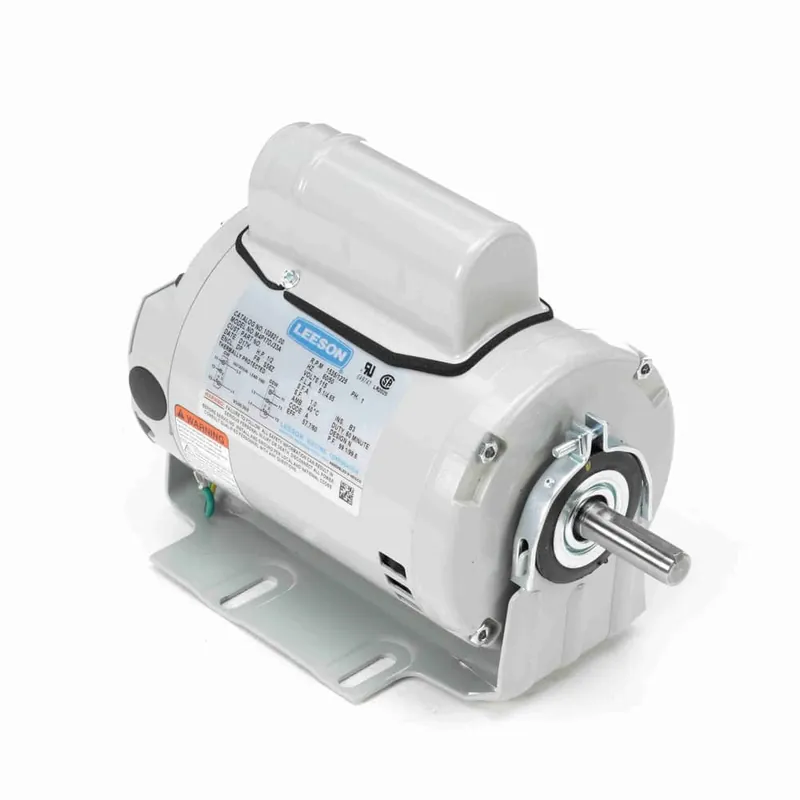

0.50HP 1PH 56Z 4P DP 1535 PSC 115V MOL

Description

Product Information

Brand Leeson
Mfr # 103821.00
Wright’s # LSN 103821.00
Country of Origin MEX

Specifications

C Dim 10.81″
Electrical Type Permanent Split Capacitor
Enclosure DP
Full Load Efficiency 57.7
Frame 56Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 5.1 & 4.65
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1535
Service Factor 1
Shaft Diameter 0.625″
Speed 1535 & 1225
Starting Method
