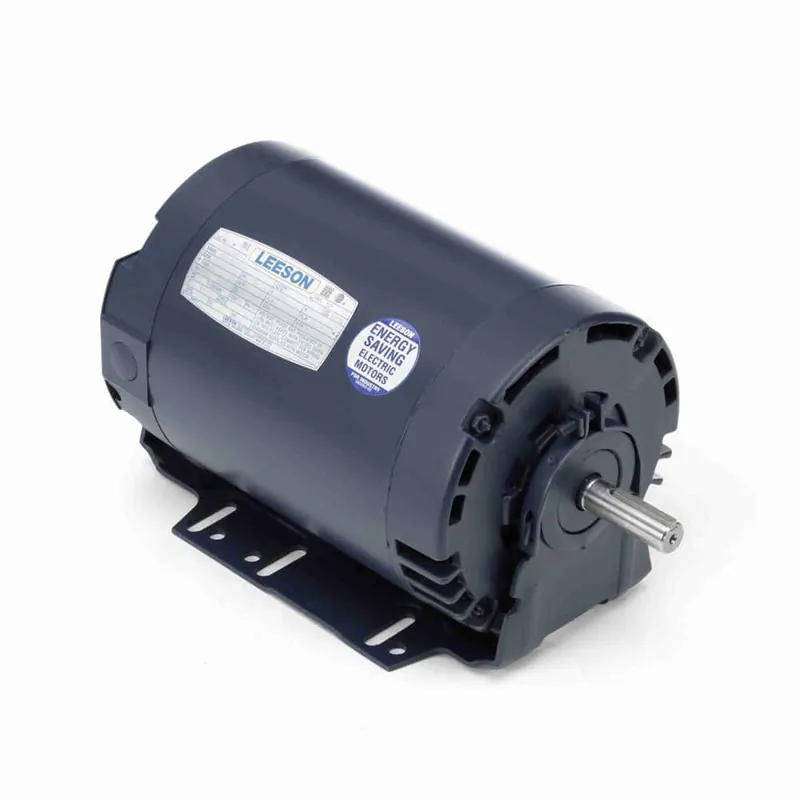

0.50HP 1PH 56H 4P DP 1725 SpP 115V

Description

Product Information

Brand Leeson
Mfr # 111953.00
Wright’s # LSN 111953.00
Country of Origin USA

Specifications

C Dim 12.32″
Electrical Type Split Phase
Enclosure DP
Full Load Efficiency 61.7
Frame 56H
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.8 & 4.6
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725 & 1140
Starting Method
