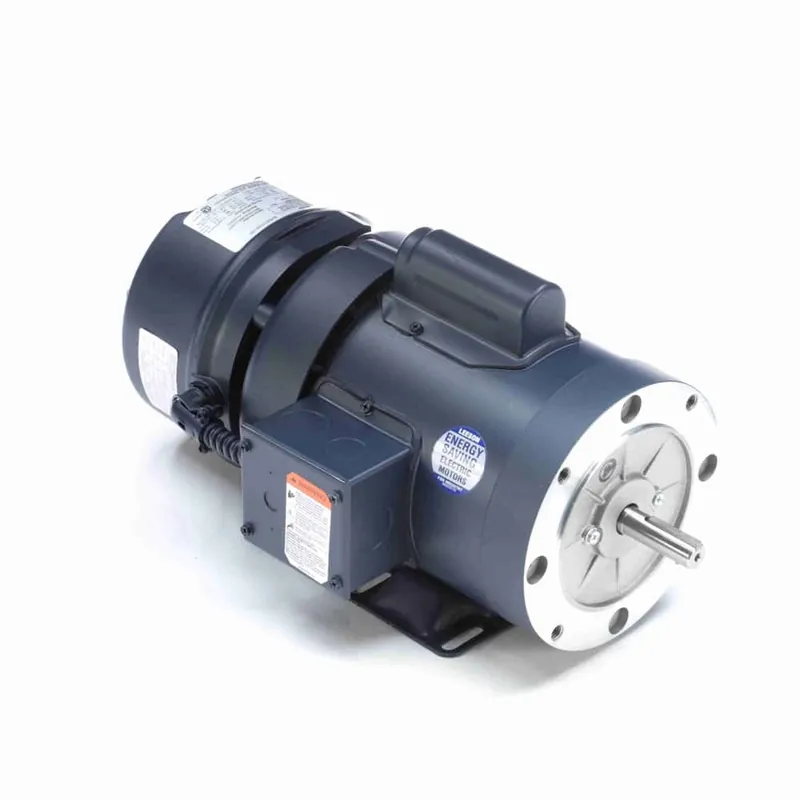

0.50HP 1PH 56C 4P TEFC 1725 115/230V WB Brake

Description

Product Information

Brand Leeson
Mfr # 111950.00
Wright’s # LSN 111950.00
Country of Origin USA

Specifications

C Dim 15.73″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 66
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 8.8/4.4
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
