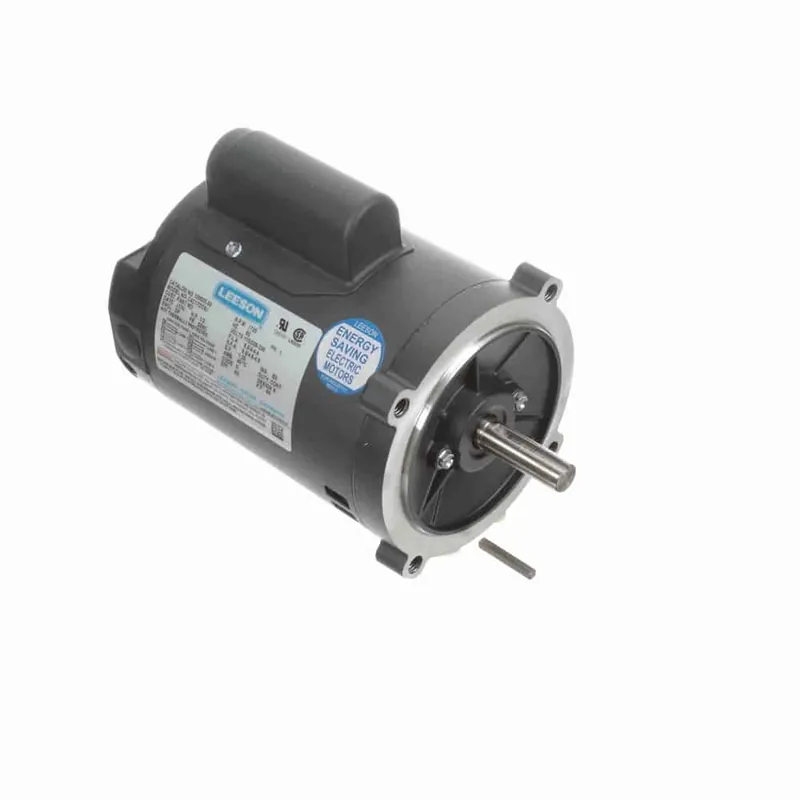

0.50HP 1PH 56C 4P DP 1725 115/208-230V NB

Description

Product Information

Brand Leeson
Mfr # 100025.00
Wright’s # LSN 100025.00
Country of Origin MEX

Specifications

C Dim 9.99″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 62
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 8.8/4.0-4.4
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
