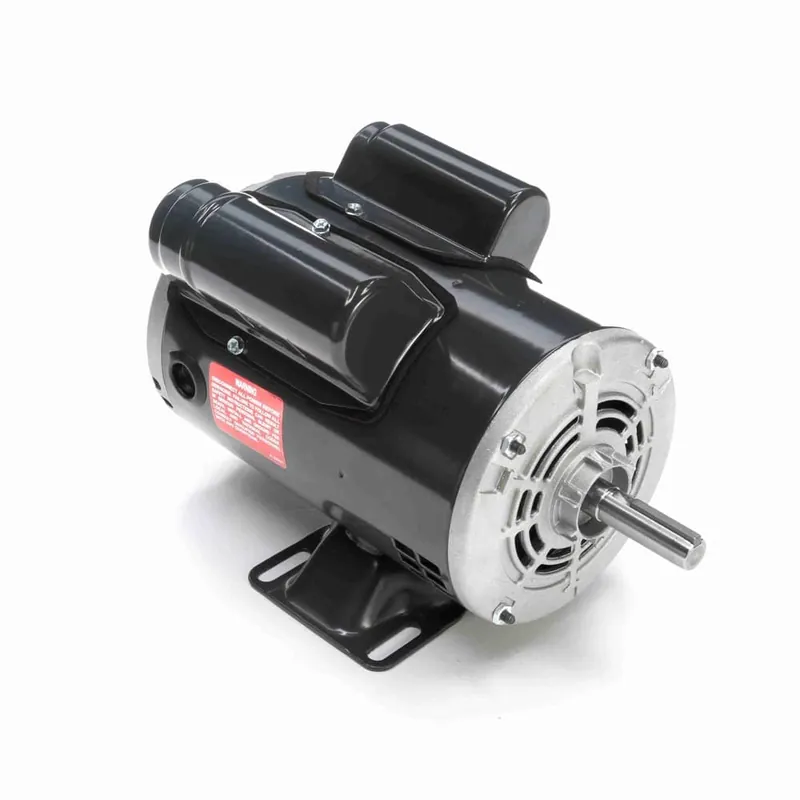

0.50HP 1PH 56 4P DP 1725 115/230V AOL

Description

Product Information

Brand Leeson
Mfr # C168A
Wright’s # LSN C168A
Country of Origin MEX

Specifications

C Dim 11.47″
Electrical Type Capacitor Start Capacitor Run
Enclosure DP
Full Load Efficiency 76.2
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.6/2.3
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
