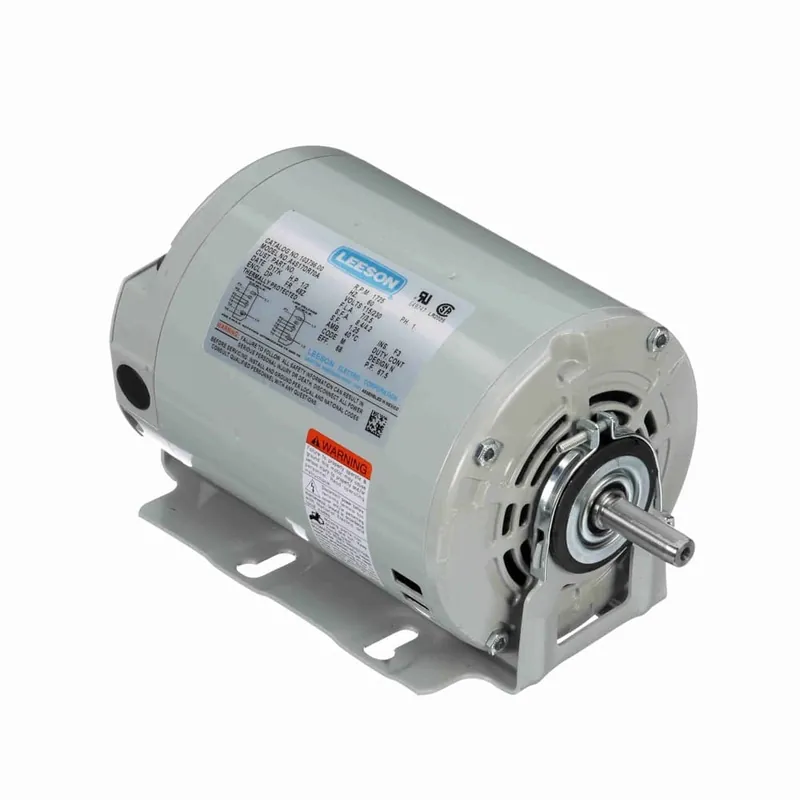

0.50HP 1PH 48Z 4P DP 1725 SpP 115/230V AOL

Description

Product Information

Brand Leeson
Mfr # 103796.00
Wright’s # LSN 103796.00
Country of Origin MEX

Specifications

C Dim 10.43″
Electrical Type Split Phase
Enclosure DP
Full Load Efficiency 68
Frame 48Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 7.0/3.5
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.5″
Speed 1725
Starting Method
