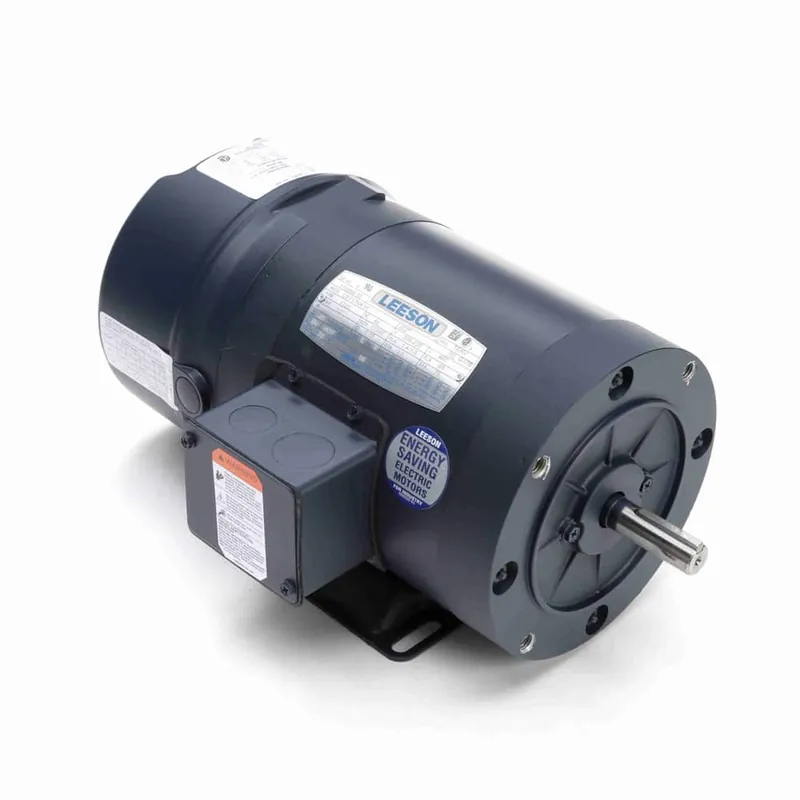

0.33HP 3PH 56C 4P TENV 1725 230/460V WB Brake

Description

Product Information

Brand Leeson
Mfr # 110669.00
Wright’s # LSN 110669.00
Country of Origin USA

Specifications

C Dim 13.56″
Electrical Type Squirrel Cage Induction Run
Enclosure TENV
Full Load Efficiency 72
Frame 56C
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 1.3/0.65
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
