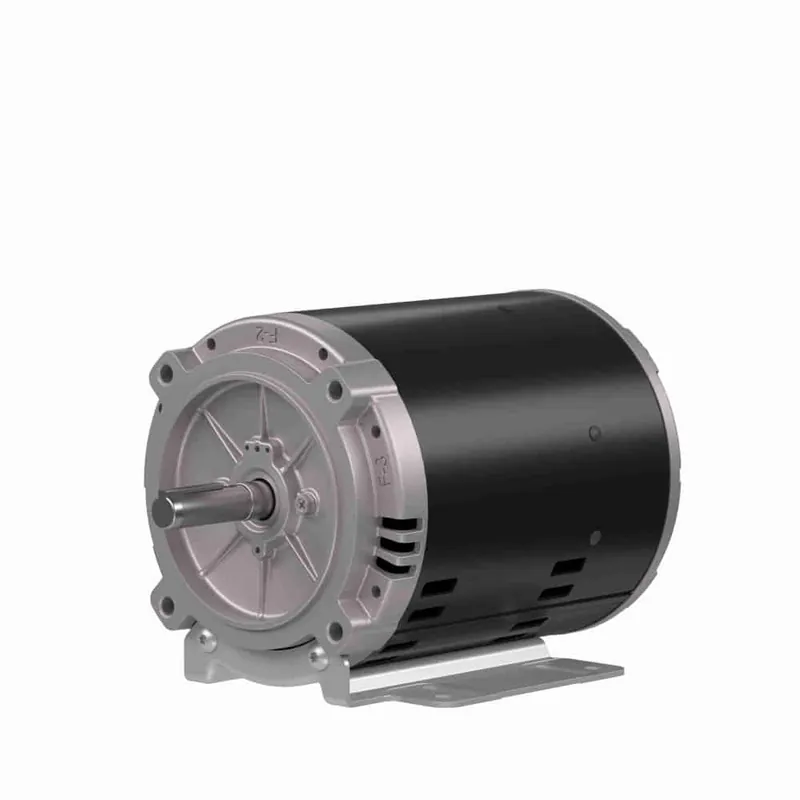

0.33HP 3PH 56C 2P DP 3450 208-230/460V WB

Description

Product Information

Brand Leeson
Sub-Brand FLEX-IN-1™
Mfr # FX13BK001
Wright’s # LSN FX13BK001
Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated
Enclosure DP
Full Load Efficiency 69.5
Frame 56C
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class F
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 1.5-1.5/.75 & 1.6/.8
Rated Voltage 208-230/460
Rotation Reversible
RPM 3450
Service Factor 1.35
Shaft Diameter 0.625″
Speed 3450 & 2850
Starting Method
