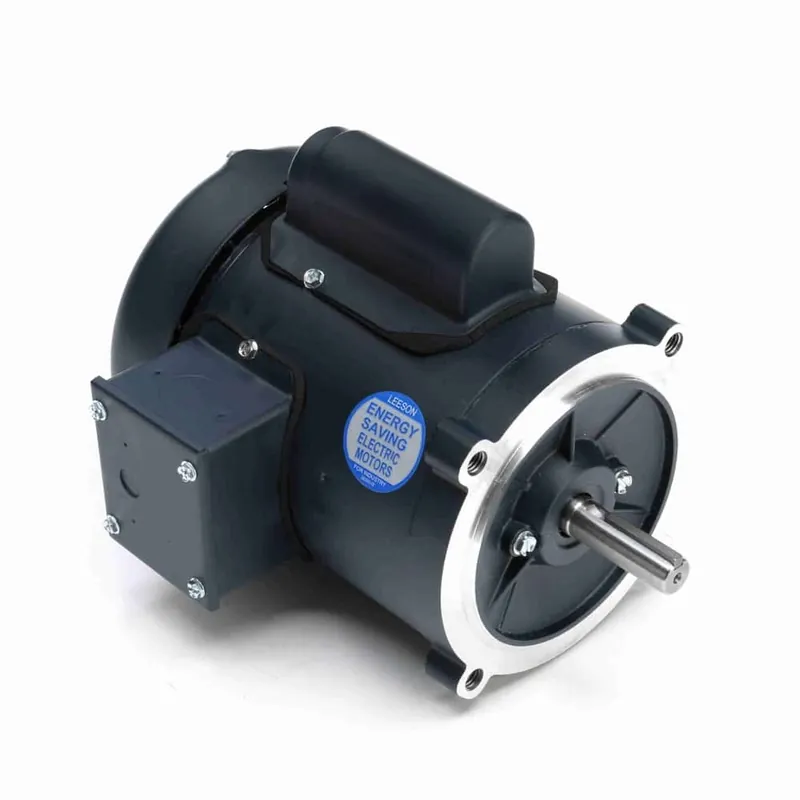

0.33HP 1PH 56C 4P TEFC 1725 115/230V NB

Description

Product Information

Brand Leeson
Mfr # 101766.00
Wright’s # LSN 101766.00
Country of Origin MEX

Specifications

C Dim 9.94″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 61
Frame 56C
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 6.6/3.3
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
