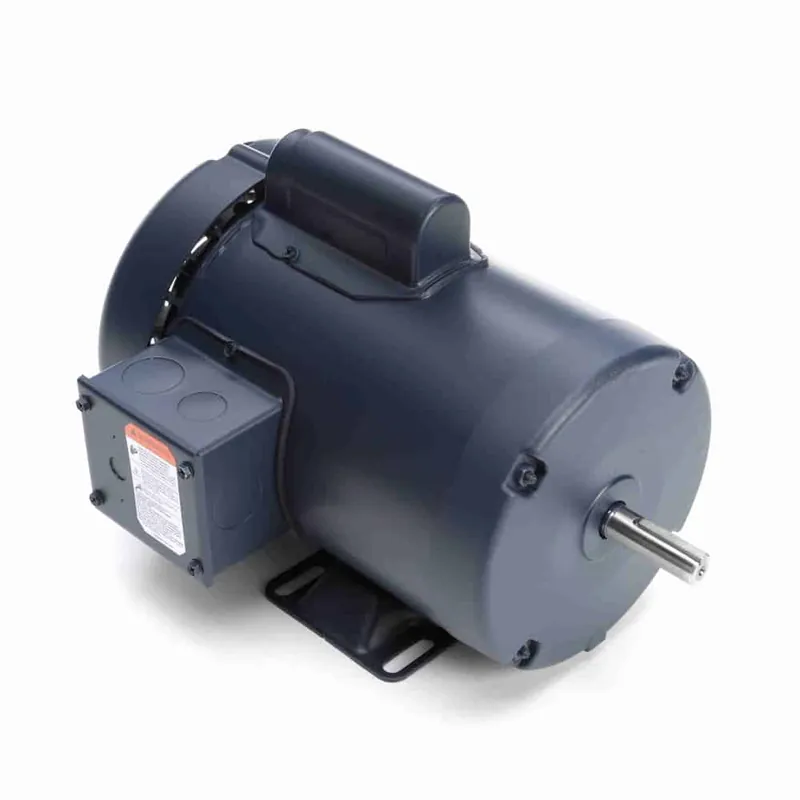

0.33HP 1PH 56 6P TEFC 1140 115/230V

Description

Product Information

Brand Leeson
Mfr # 110009.00
Wright’s # LSN 110009.00
Country of Origin USA

Specifications

C Dim 12.48″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 57.7
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 6
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.8/3.9
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1140
Starting Method
