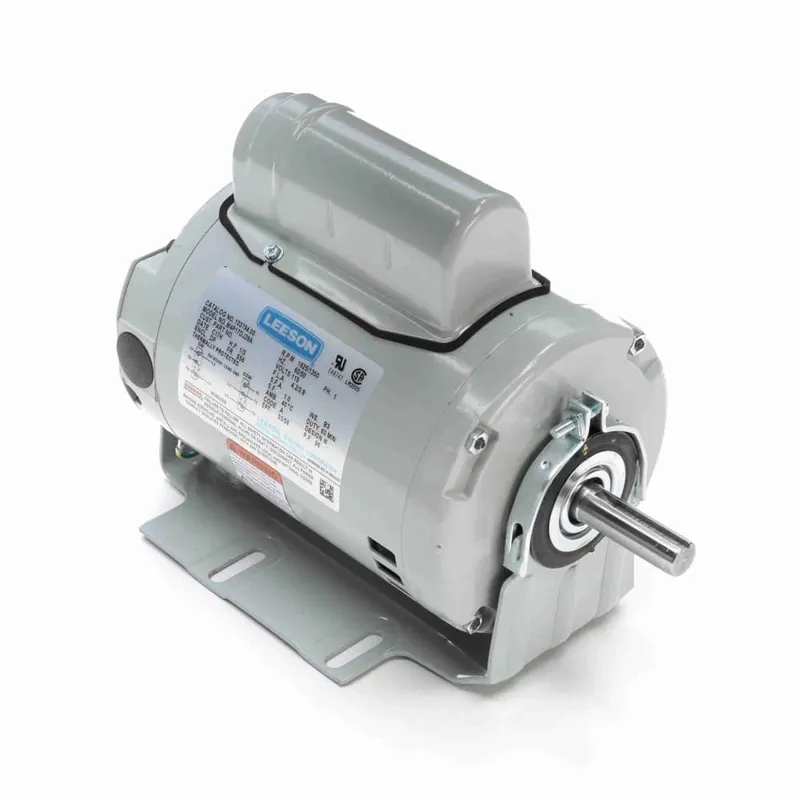

0.33HP 1PH 56 4P DP 1625 PSC 115V MOL

Description

Product Information

Brand Leeson
Mfr # 103794.00
Wright’s # LSN 103794.00
Country of Origin MEX

Specifications

C Dim 10.81″
Electrical Type Permanent Split Capacitor
Enclosure DP
Full Load Efficiency 53
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 4.2 & 3.8
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1625
Service Factor 1
Shaft Diameter 0.625″
Speed 1625 & 1350
Starting Method
