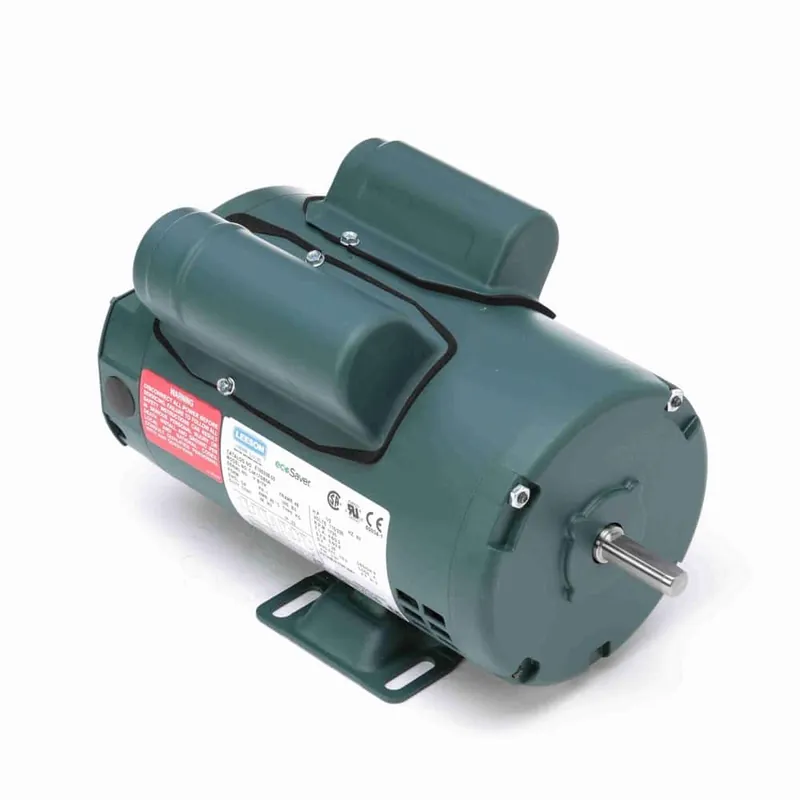

0.33HP 1PH 56 2P DP 3450 115/208-230V

Description

Product Information

Brand Leeson
Mfr # 100336.00
Wright’s # LSN 100336.00
Country of Origin MEX

Specifications

C Dim 8.99″
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 63
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 5.6/2.5-2.8
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.35
Shaft Diameter 0.625″
Speed 3450
Starting Method
