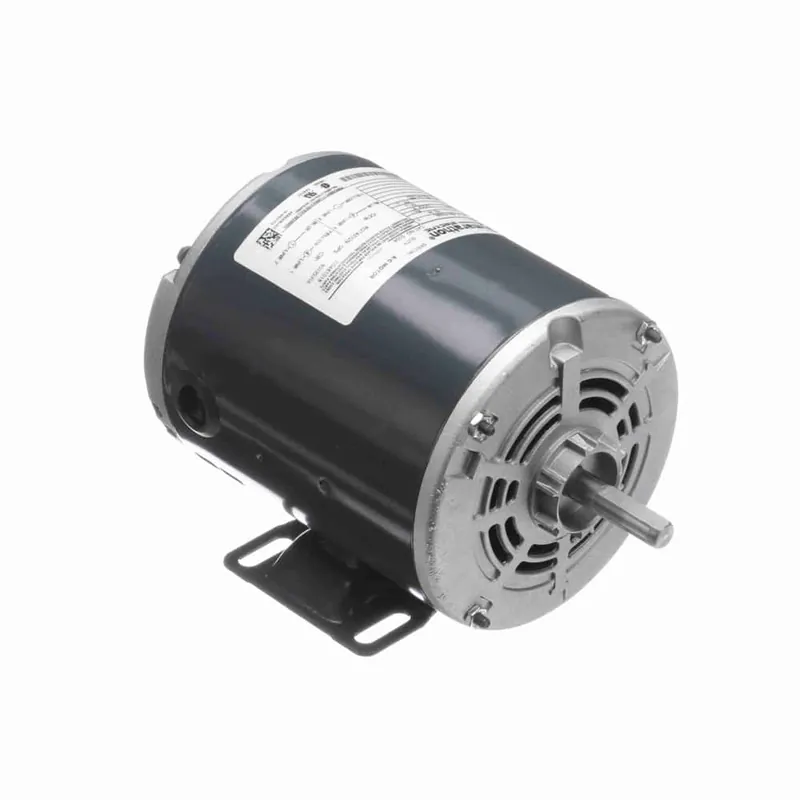

0.33HP 1PH 48 4P DP 1725 SpP 115V

Description

Product Information

Brand Leeson
Mfr # S006
Wright’s # LSN S006
Country of Origin MEX

Specifications

C Dim 9.34″
Electrical Type Split Phase
Enclosure DP
Full Load Efficiency 57.5
Frame 48
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 6.6
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.5″
Speed 1725
Starting Method
