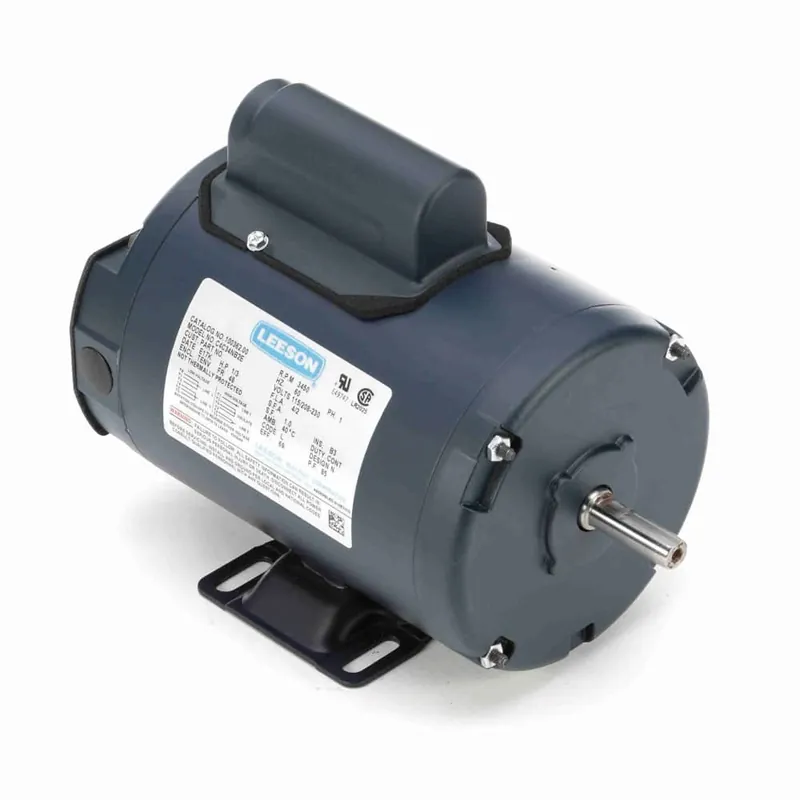

0.33HP 1PH 48 2P TENV 3450 115/230V

Description

Product Information

Brand Leeson
Mfr # 100362.00
Wright’s # LSN 100362.00
Country of Origin MEX

Specifications

C Dim 9.93″
Electrical Type Capacitor Start Induction Run
Enclosure TENV
Full Load Efficiency 69
Frame 48
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 4.0/2.0
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.5″
Speed 3450
Starting Method
