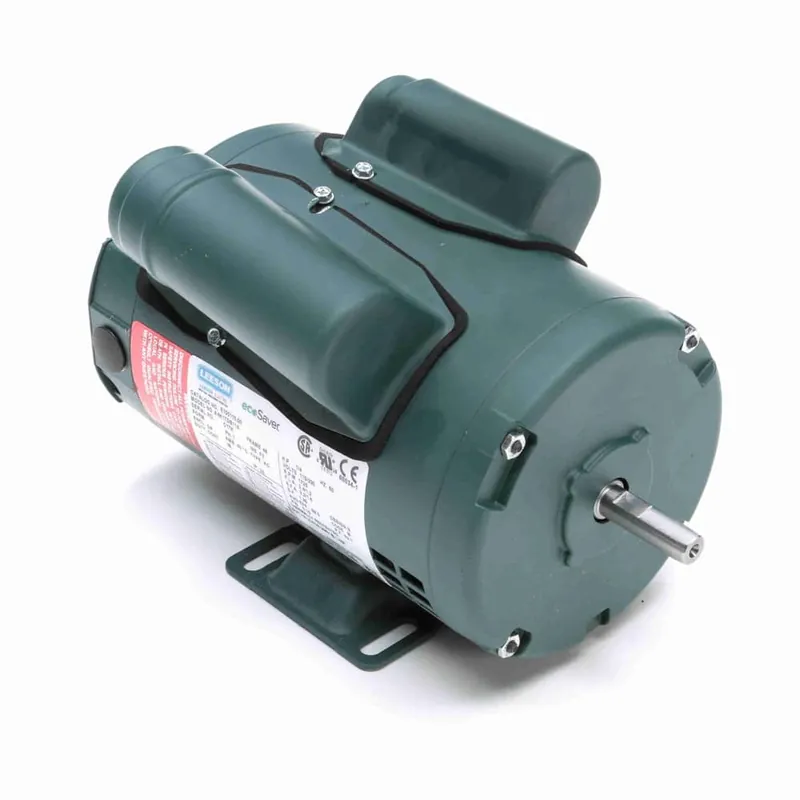

0.25HP 1PH 48 4P DP 1725 115/230V AOL

Description

Product Information

Brand Leeson
Sub-Brand ecoSaver™
Mfr # E100115.00
Wright’s # LSN E100115.00
Country of Origin MEX

Specifications

C Dim 10.12″
Electrical Type Capacitor Start Capacitor Run
Enclosure DP
Full Load Efficiency 68.5
Frame 48
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class F
kW 0.19kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.4/1.2
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.5″
Speed 1725
Starting Method
